Sensor Ready Full Body LED High Bay | Selectable 24,000 Max Lumens | 4K/5K Kelvin Selectable

Product Description

Model FBHSR - 15,000/18,000/24,000 Lm

See Specification Sheet

*Call us to order with options (Emergency Drivers, Optical Systems, Mounting, Stepdown Transformer for 347-480V)*

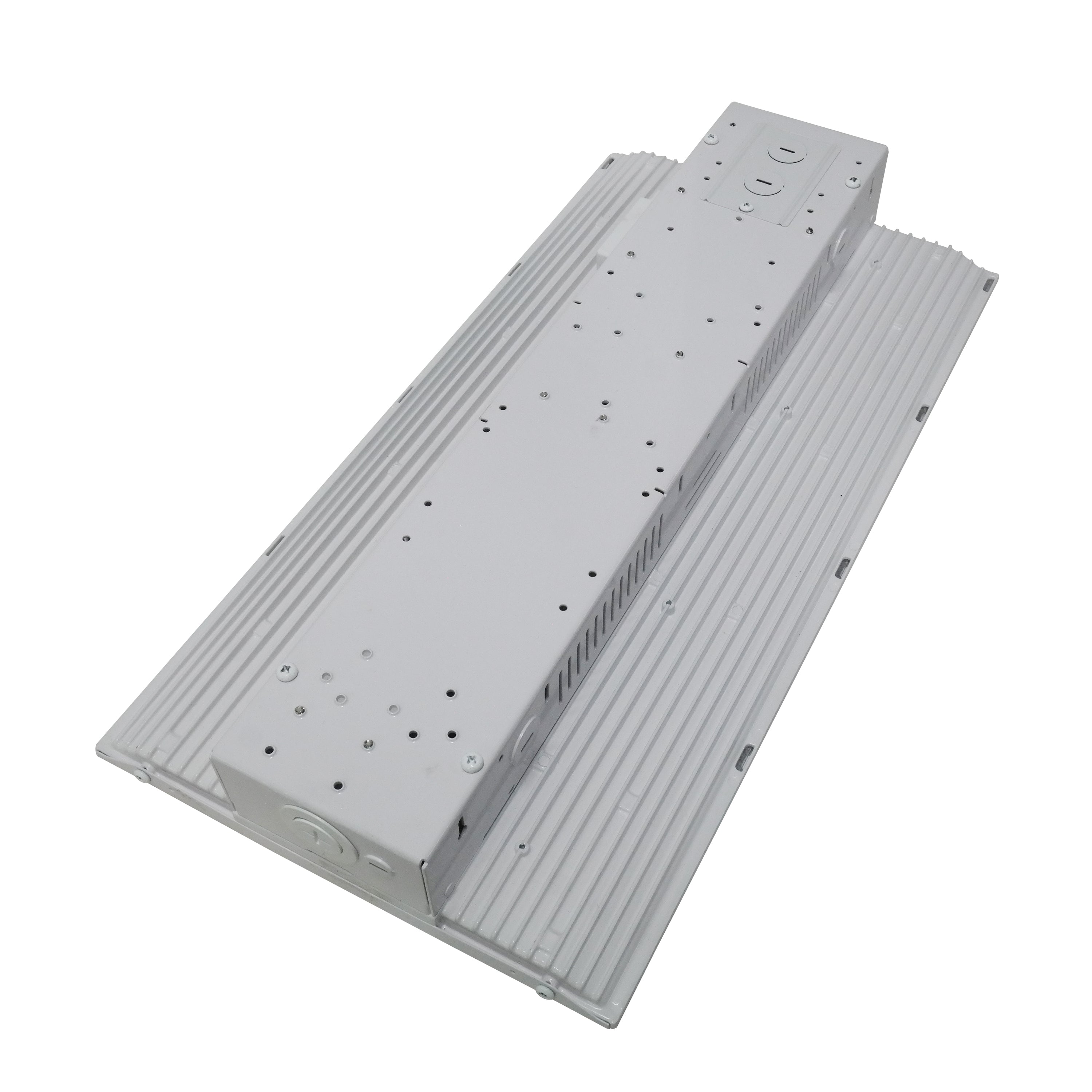

HOUSING

• Premium powder-coat, die cast aluminum, white housing.

ELECTRICAL

• Operating temperature (ambient):

-40°C to 55°C (-40°F to 131°F) for FHBSR-181512L and FHBSR241815L.
-40°C to 50°C (-40°F to 122°F) for FHBSR-363024L and FHBSR604836L.

• Universal 120-277V AC voltage (50-60Hz) is standard.
• 347-480V achieved with step-down transformer.
• 0-10VDC dimming drivers are standard.
• Emergency driver option available.
• Input transient surge protection = 6kV.
• PF > 0.9 ; THD < 20%.

OPTICAL SYSTEM

• Polycarbonate prismatic lens.
• Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures*.
• Tri-lumen selectable delivers 12,000 to 60,000 nominal lumens (see lumen
• tables on page 3)**.

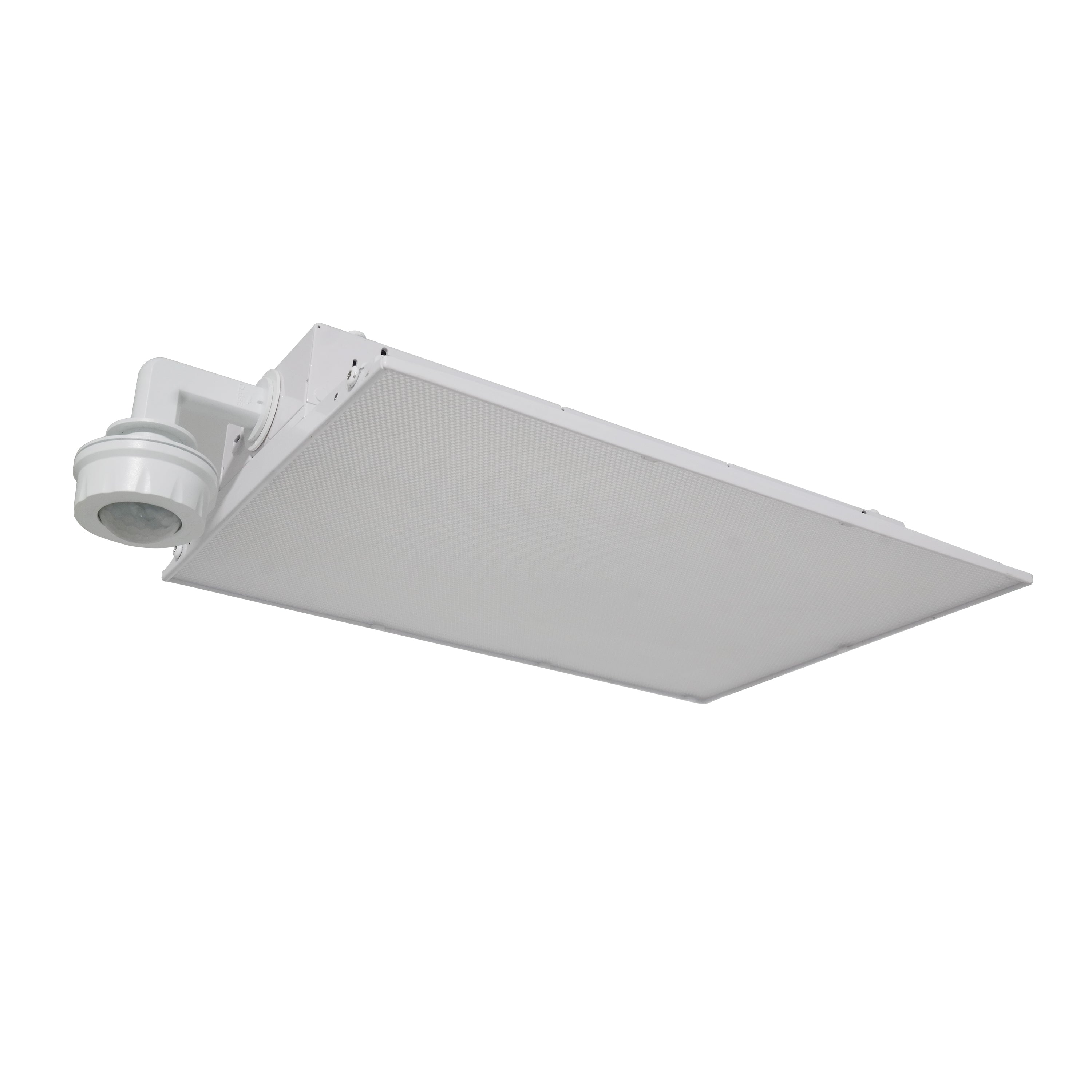

• Screw in sensor ready. Sensor and remote control sold separately.
• Remote control required to change factory sensor settings (see default settings
• on page 2).
• Long-life LEDs provide 135,000 hours of operation with at least 70% of initial
• lumen output (L70), and 41,000 hours with at least 90% of initial lumen output
• (L90)***.
• • LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000
• hours of operation.
• • Color rendering index > 80%

MOUNTING

• Chain-mount kits (includes v-hooks , 1-meter long chain) are standard.
• Optional surface mounting kit provides attachment to solid surfaces*.
• Optional pendant mounting kit provides pendant attachment to 1/2” rigid
• conduit*.
• Optional cable mount kit provides luminaire suspension.

* Surface mount kit and Pendant mount kit are not compatible with the UNC StepDown Transformer option,
nor the on-board, factory installed EM driver options.

CODE COMPLIANCE

• cULus listed for damp locations.
• DLC premium listed.
• Complies with FCC part 15, class A.

WARRANTY

• 5 year warranty on all electronics and housing.
