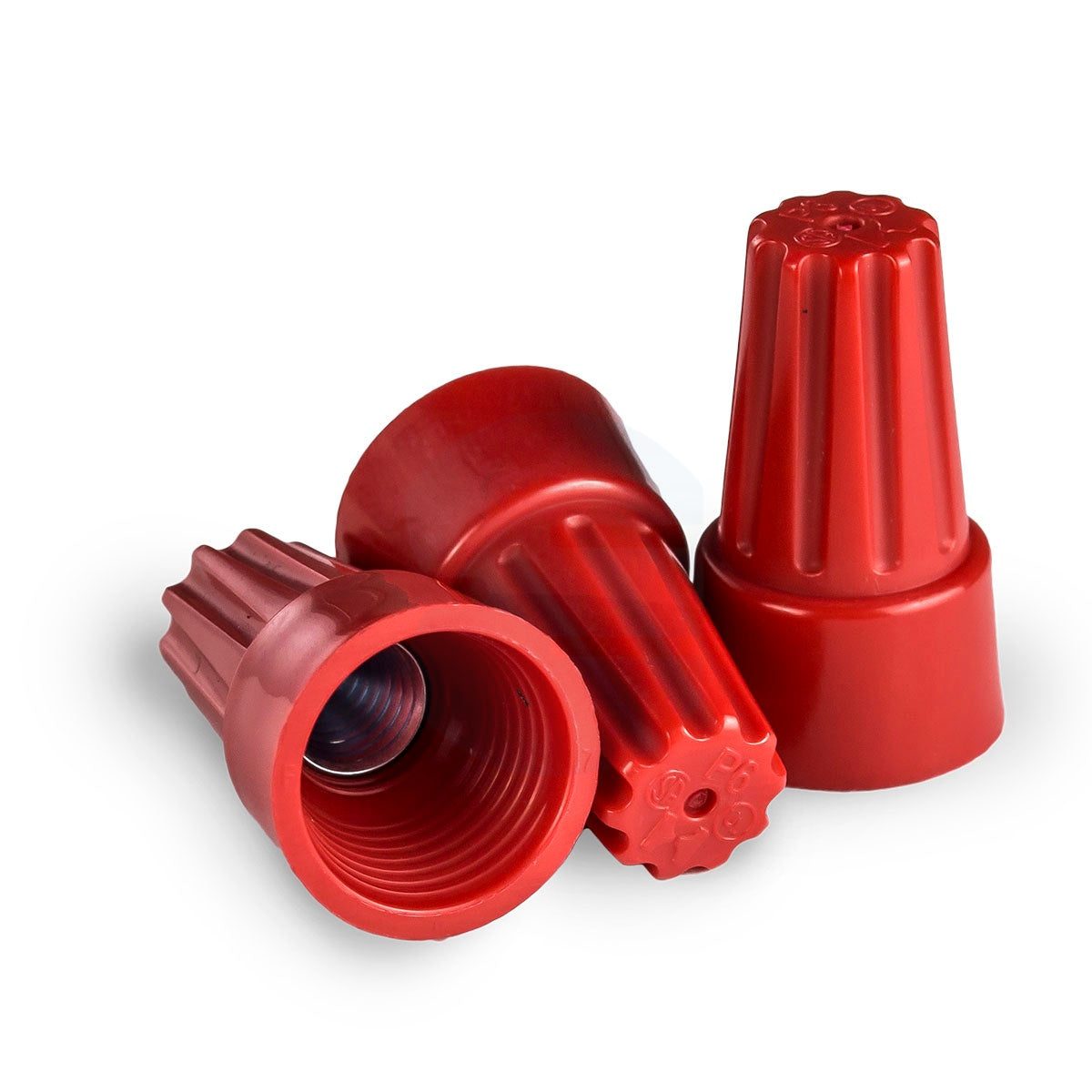

Small Red Wire Connectors 500/Bag

Small Red Wire Connectors 500/Bag

: In stock

: Wire Connectors

Regular price $18.30 Sale

Features: Temp. rating 105°C (221°F) max Voltage rating 600V max building wiring. Listed as a pressure-type wire connector on the following solid and/or standard wire combinations: Wire combinations:...

Features:

  • Temp. rating 105°C (221°F) max
  • Voltage rating 600V max building wiring.
  • Listed as a pressure-type wire connector on the following solid and/or standard wire combinations:
  • Wire combinations:
    6 #18; 2 to 4 #14; 2 to 3 #12; 2 #10; 3 #12; 1 #12 with 2 #14; 2 #12 with 1 #14; 1 310 with 2 #14; 1 #10 with 1 #12; 3 #14 with 1 #18 or 1 #16; 1 #12 + 2
  • 4 #16; 2 #12 with 2 #16; 2 #12 with 2 #18 or #16; 1 #10 solid + 1
  • 4 #16 solid; 1 #10 + 1
  • 3 #16; 2 #10 with 1 #16
  • Standard Package: 500 Pieces
