Recessed Edge Lit Exit Sign | Red / Green Letter | Single / Double Face

Overview:

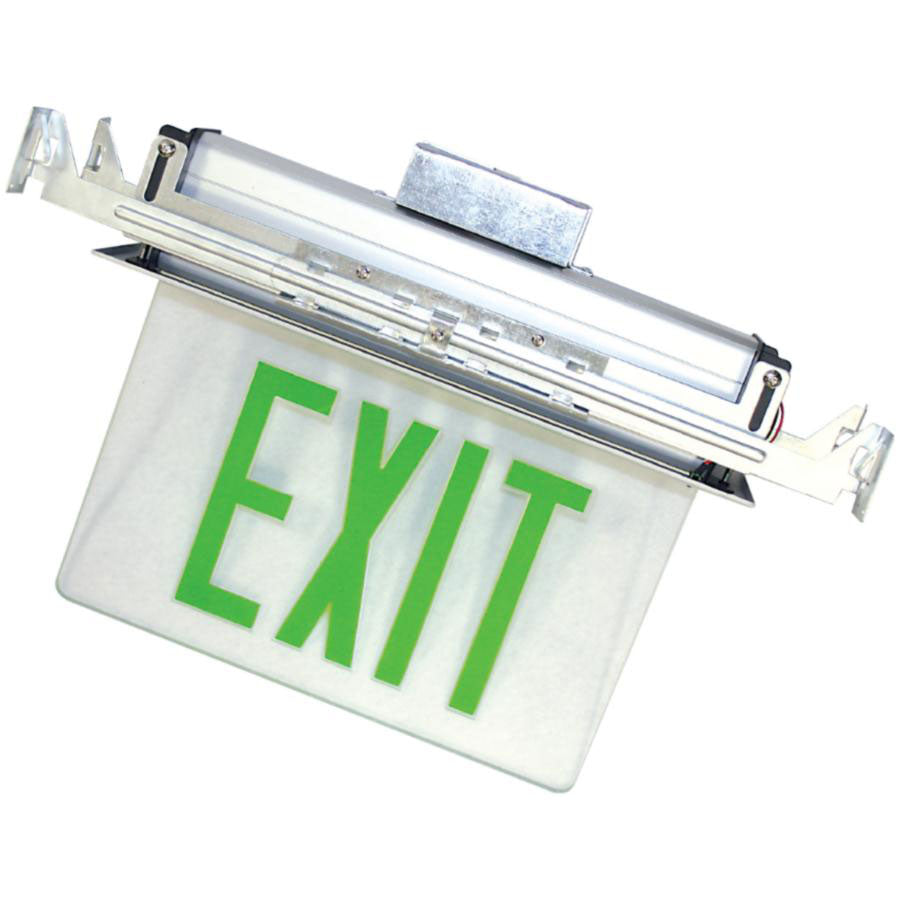

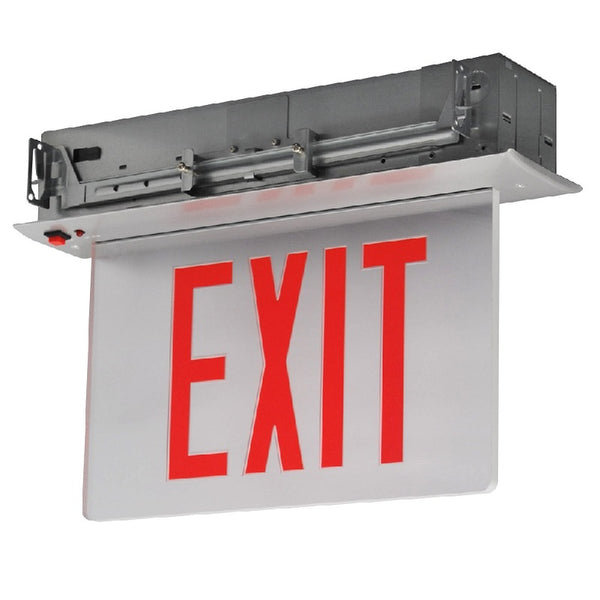

The RELZXTE Recessed Edgelit Aluminum Exit Sign offers a sleek, modern appearance ideal for architectural applications. Designed for drywall or drop ceiling installations, it provides bright, uniform illumination through a precision-engineered edgelit acrylic panel and durable extruded aluminum housing.

Illumination:

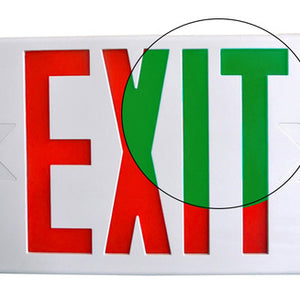

• Ultra-bright, energy-efficient Red or Green LEDs ensure high visibility and low energy consumption.

• UV-stabilized, ultra-clear acrylic edgelit panel provides consistent, uniform illumination.

• Double-face models include factory-installed silver or white mylar background panels for enhanced visibility.

• Self-adhesive Chevron appliques and guide template included for field-selectable directional indicators.

Electrical:

• Dual 120/277V operation standard.

• Charge rate/power “ON” LED indicator and push-to-test switch ensure code-compliant performance testing.

• 4.8V long-life, maintenance-free NiCd battery provides a minimum 90-minute emergency runtime (EM models only).

• Internal solid-state transfer switch automatically connects battery power to the LED board during outages.

• Fully automatic, two-rate solid-state charger recharges the battery within 24 hours.

Construction:

• Premium-grade extruded aluminum housing with removable trim assembly for easy maintenance access from below.

• Available finishes: natural aluminum, black, or white powder-coated.

• Compatible with drywall or drop ceiling mounting; bar hangers included for recessed installations.

• Optional wall-mount capability for additional versatility.

Certifications & Compliance:

• UL Listed for Damp Locations.

• CEC Title 20 Compliant.

• Meets NFPA 101, NEC, and OSHA illumination standards.

Warranty:

• Five-year warranty on electronics and housing.

• Battery pro-rated for five years.
