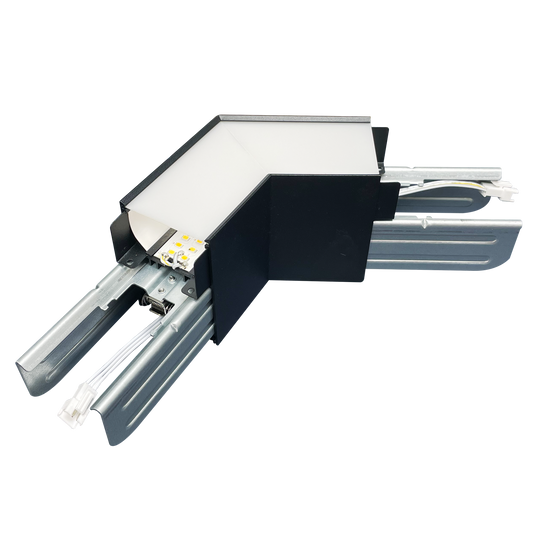

The Architectural Linkable Linear V120° Connectors (Models LR42628 – White & LR42629 – Black) are precision-engineered accessories designed to expand the versatility of your architectural linear lighting installations. These connectors enable clean, sharp 120-degree angular transitions, allowing designers to create continuous, seamless geometric lighting layouts in commercial, retail, hospitality, and modern architectural environments.

Built for compatibility with 3 CCT selectable and 3-wattage selectable linear fixtures, these V120° connectors maintain full system performance continuity, including uniform illumination, smooth dimming, and long-term reliability. Available in both white and black finishes, they provide flexibility to match any interior aesthetic—from minimalistic white ceilings to bold black modern designs.

Constructed with professional-grade materials and designed for easy integration, these connectors support 120–277V universal input, 0–10V dimming, and an extended 50,000-hour rated lifetime, ensuring dependable use across demanding lighting projects. With a 120° beam angle, they preserve the fixture’s optical performance and provide visually consistent linear lighting around corners, angles, and creative layouts.

Ideal for architects, lighting designers, and contractors seeking premium components for modular linear lighting systems, these connectors deliver durability, simplicity, and sleek visual continuity.

Technical Highlights

Models

• LR42628 – V120° Connector, White

• LR42629 – V120° Connector, Black

Lighting Performance

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120º

• CRI: 80

• Dimming: 0–10V

• Rated Lifetime: 50,000 hours

Electrical

• Input Voltage: 120–277V

• Power Factor: 0.9

• Operating Temperature: -4ºF to 113ºF

Finishes

• White (LR42628)

• Black (LR42629)

Packaging

LR42628 – White

• UPC: 793888481244

• Master Carton: 22.04" L × 19.21" W × 17.12" H

• Case Size: 20

LR42629 – Black

• UPC: 793888481343

• Master Carton: 22.04" L × 19.21" W × 17.12" H

• Case Size: 20
