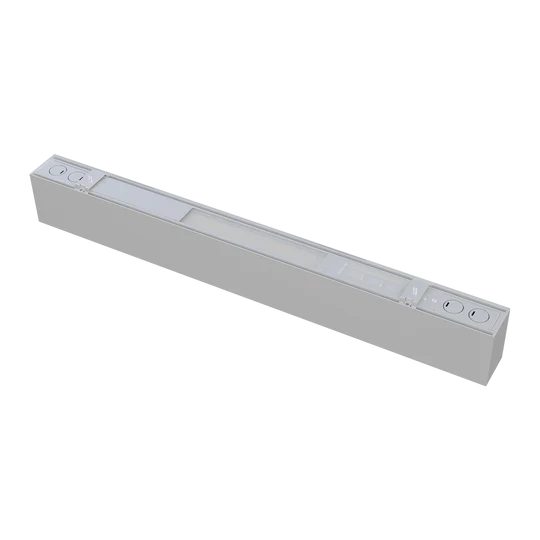

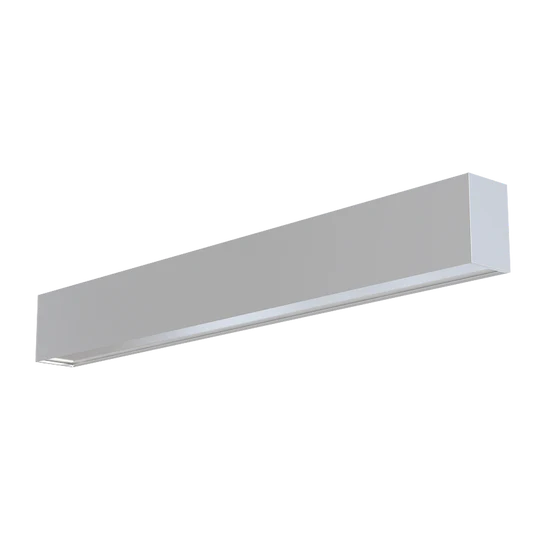

The LR42605 (White) and LR42606 (Black) 2' Architectural Linkable Linear Fixtures are premium, modern lighting solutions engineered for commercial, retail, office, and high-end residential applications. Designed with 3 CCT selectable, 3 wattage selectable, and up/down light distribution, these fixtures provide exceptional flexibility for custom lighting environments.

With adjustable wattage levels (15W/20W/25W) and selectable color temperatures (3500K / 4000K / 5000K), this architectural linear luminaire adapts to various ambiance requirements while maintaining exceptional energy efficiency at 115 lm/W.

Their slim 2-foot profile, clean modern aesthetic, and linkable design make them ideal for continuous runs, suspended installations, or standalone architectural accents. Constructed with long-lasting components and a rated lifetime of 50,000 hours, these luminaires deliver durability, performance, and refined visual comfort.

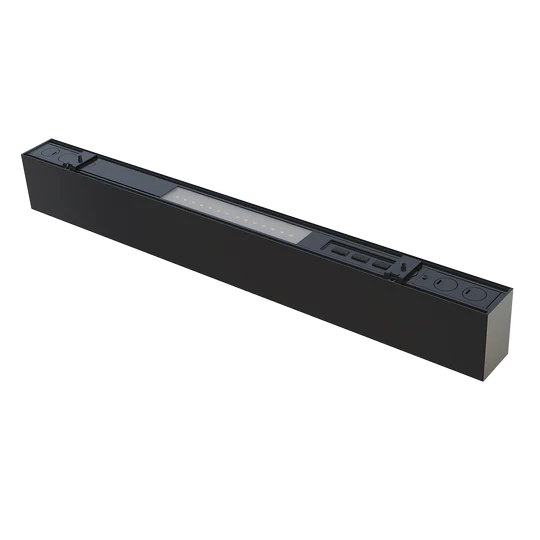

Available in white (LR42605) and black (LR42606) finishes to match any interior design requirement.

Technical Specifications

General

Dimensions

• Length: 25.02"

• Width: 1.97"

• Height: 3.11"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Lumen Output: 1725 / 2300 / 2875

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage Selectable: 15W / 20W / 25W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hrs

• Dimmable: 0–10V

• Power Factor: 0.9

• Lumen Efficacy: 115 lm/W

• Operating Temperature: -4°F to 113°F

• Yearly Operating Cost: $3.01

Packaging

LR42605 – White

• UPC: 793888441248

• Master Barcode: 10793888441245

• Master Carton: 28" x 9.64" x 15.4"

• Case Size: 12

LR42606 – Black

• UPC: 793888441347

• Master Barcode: 10793888441344

• Master Carton: 28" x 9.64" x 15.4"

• Case Size: 12
