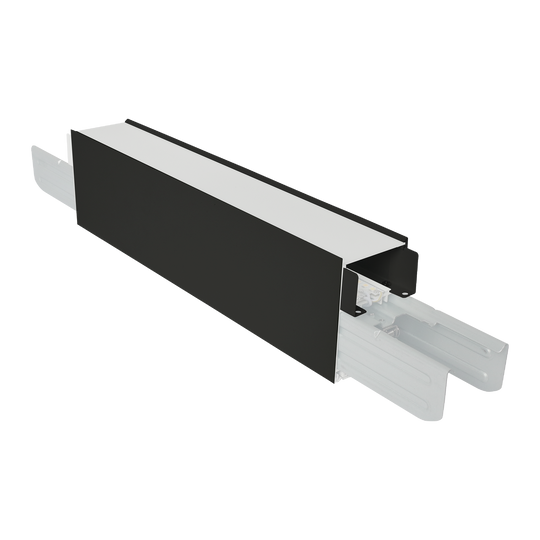

The Architectural Linkable Linear 12" Connectors (LR42600 – White & LR42601 – Black) are high-performance connectors engineered to seamlessly join modular linear lighting systems. These connectors are ideal for creating continuous runs of architectural linear lighting in commercial, industrial, and office spaces, providing uniform illumination and clean, professional aesthetics.

Compatible with 3 CCT / 3 Wattage Selectable Architectural Linear fixtures, these 12" connectors allow color temperature selection of 3500K, 4000K, and 5000K, giving users versatile lighting options. They offer a 120° beam angle and CRI 80 for natural and accurate color rendering.

Designed for durability, the connectors support a 50,000-hour rated lifetime, 0–10V dimming, and operate on a wide 120–277V input with a 0.9 power factor. Available in sleek white or professional black finishes, they measure 17.5" (L) × 1.97" (W) × 2.95" (H) and are perfect for long linear lighting configurations.

⚙️ Technical Specifications Summary

Models

• LR42600 – White 12" Connector

• LR42601 – Black 12" Connector

Dimensions

• Length: 17.5"

• Width: 1.97"

• Height: 2.95"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

Electrical

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimming: 0–10V

• Power Factor: 0.9

• Operating Temperature: -4°F to 113°F

Finish

• White (LR42600)

• Black (LR42601)

Packaging

LR42600 – White

• UPC: 793888455740

• Master Carton: 18.78" × 17.40" × 10.03"

• Case Size: 20

LR42601 – Black

• UPC: 793888455849

• Master Carton: 18.78" × 17.40" × 10.03"

• Case Size: 20
