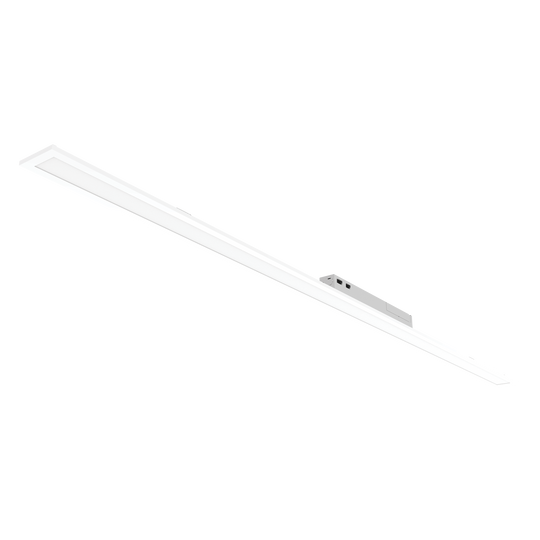

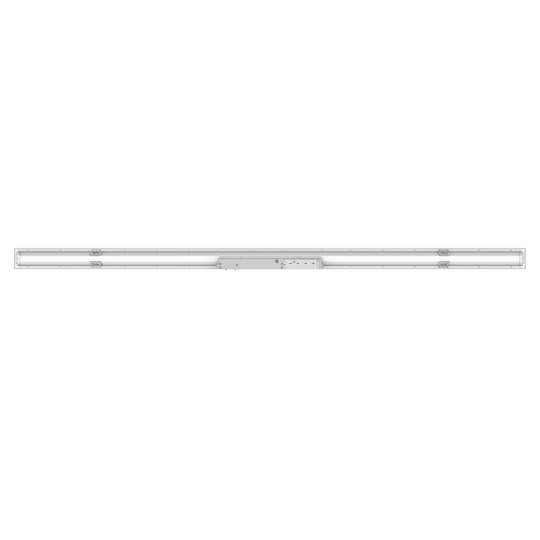

4" X 8' LED Recessed Backlit Flat Panel | 8.800Lm Max | 120/277V | CCT Selectable | Montauk Collection | Luxrite LR24223

The LR24223 4" x 8' Recessed Backlit LED Panel is a high-performance commercial lighting solution designed for maximum flexibility, efficiency, and uniform illumination. Featuring selectable wattage and four adjustable color temperatures, this LED panel allows installers and facility managers to customize lighting output and ambiance based on the application.

With 3 wattage options (37W, 57W, and 80W) and four selectable CCT levels (3000K, 3500K, 4000K, and 5000K), this fixture can deliver between 4400 and 8800 lumens, making it ideal for offices, retail stores, educational facilities, healthcare environments, and other large commercial spaces.

The advanced backlit LED technology ensures consistent light distribution with a wide 110° beam angle, eliminating hotspots and shadows commonly found in traditional panel lights. The fixture also features 0–10V dimming capability, enabling smooth brightness control and improved energy management.

Built with a sleek white finish and a slim, durable housing, the LR24223 panel integrates seamlessly into modern ceiling grids while maintaining a professional appearance. With a 50,000-hour rated lifetime, high 110 lm/W efficacy, and reliable 120–277V universal voltage compatibility, this LED panel is engineered to deliver long-term performance and energy savings.

Key Features

• Selectable wattage: 37W / 57W / 80W

• 4 CCT options: 3000K / 3500K / 4000K / 5000K

• High lumen output: 4400 / 6600 / 8800 lumens

• Backlit LED technology for uniform illumination

• 0–10V dimmable for lighting control systems

• Wide 110° beam angle for consistent light coverage

• Energy-efficient performance: 110 lm/W

• Long lifespan: 50,000 hours

• Universal voltage: 120–277V

• Ideal for commercial and professional lighting installations

Technical Specifications

General Information

• Item Number: LR24223

• Description: LED4"X8BPNL/3WO/4CCT/D

• Product Type: Recessed Backlit LED Panel

• Shape: 4" Backlit Panel

• Size: 4" x 8'

Dimensions

• Length: 95.79"

• Width: 3.93"

• Depth: 1.97"

• Finish: White

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 3000K / 3500K / 4000K / 5000K

• Lumen Output: 4400 / 6600 / 8800 lm

• Beam Angle: 110°

• CRI: 80

Electrical

• Wattage: 37W / 57W / 80W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Input Current: 740mA

• Frequency: 50/60Hz

• Lumen Efficacy: 110 lm/W

• Rated Lifetime: 50,000 hours

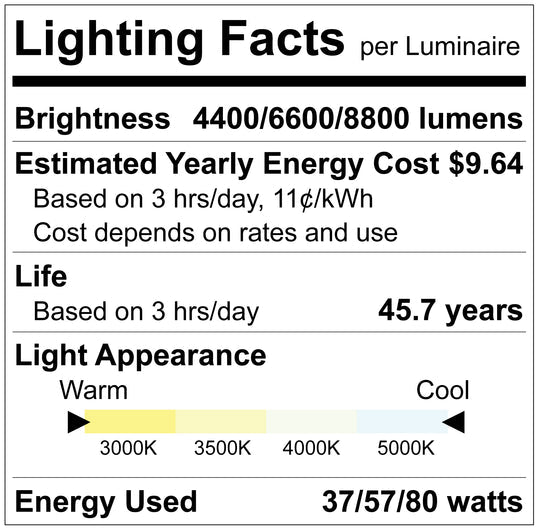

• Estimated Yearly Energy Cost: $9.64

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging

• UPC Barcode: 732388925964

• Master Barcode: 10732388925961

• Case Size: 6 units

Master Carton Dimensions

• Length: 97.04"

• Width: 9.25"

• Height: 7.28"
