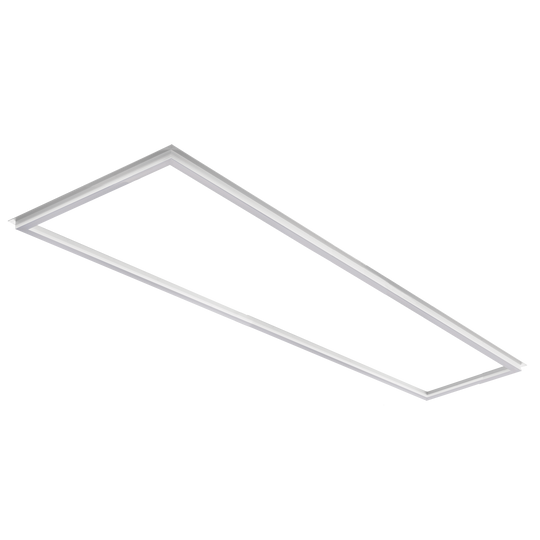

The LR24168 1x4 LED Frame Panel is a versatile, high-performance lighting solution designed for commercial, office, educational, and residential applications. Featuring 5 CCT selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and 3 wattage options (20W, 30W, 40W), this panel allows precise control over light output and color to match any interior environment or design preference.

Measuring 47.75" x 11.92" with a slim 0.5" profile, it integrates seamlessly into ceiling grids or surface mount installations. The high CRI of 80 ensures accurate color rendering, while the 120° beam angle delivers uniform, glare-free illumination. Compatible with 0-10V dimming systems, the panel has a long lifespan of 50,000 hours and operates reliably in temperatures ranging from -4ºF to 113ºF.

With a white finish and robust construction, the LR24168 provides energy-efficient, customizable lighting for offices, conference rooms, hallways, classrooms, and retail spaces.

Technical Specifications

• Item Number: LR24168

• Item Description: LED1X4FRAME/PNL/3WO/5CCT/D

• Size: 1x4

• Shape: Frame Panel

• Finish: White

• Dimensions:

  • Length: 47.75"

  • Width: 11.92"

  • Height: 0.5"

• Photometric:

  • Color Temperature: CCT Selectable (2700K / 3000K / 3500K / 4000K / 5000K)

  • Lumen Output: 2500 / 3750 / 5000 lm

  • Beam Angle: 120°

  • CRI: 80

• Electrical:

  • Power: 20 / 30 / 40 W

  • Input Voltage: 100–277V

  • Rated Lifetime: 50,000 hours

  • Dimmable: 0–10V

  • Power Factor: >0.95

  • Frequency: 50/60Hz

  • Lumen Efficacy: 130 lm/W

  • Operating Temp: -4ºF to 113ºF

• Packaging:

  • UPC Barcode: 793888418844

  • Master Barcode: 10793888418841

  • Master Carton Dimensions: 51.57" x 12.60" x 8.07"

  • Weight: 15.43 lbs

  • Case Size: 6
