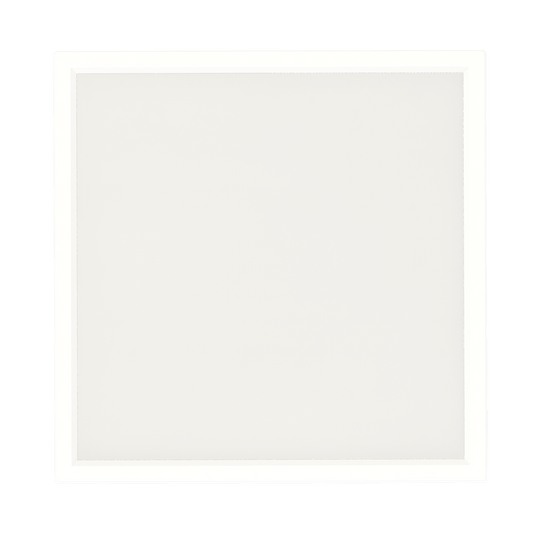

9" Square LED Surface Mount | 1,480Lm | CCT Selectable | Luxrite LR23535

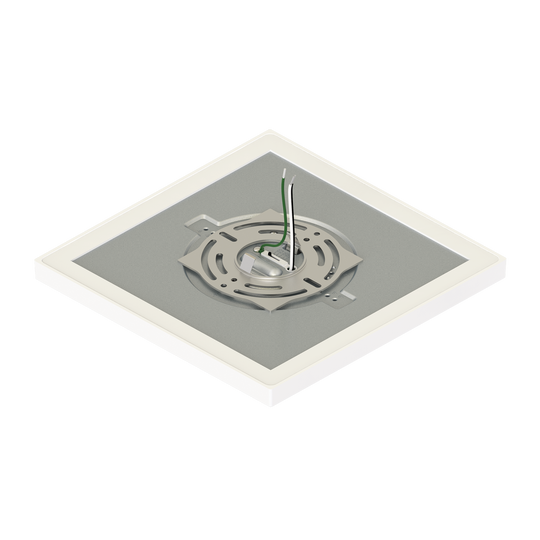

The LR23535 9" Slim Surface Mount Square LED Light offers a sleek, modern lighting solution for residential and commercial ceilings. Its low-profile square design ensures seamless integration into any environment, providing bright and efficient illumination without recessed installation.

With 5 selectable color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—this fixture lets you tailor the lighting to any setting, from warm, relaxing ambiance to crisp, daylight-like brightness. Delivering 1480 lumens and a CRI of 90, it provides high-quality, accurate color rendering for tasks, retail displays, offices, or living spaces.

Featuring a 110° wide beam angle and TRIAC dimming, the LR23535 ensures smooth light adjustment and even distribution. With 18W power consumption and a 50,000-hour rated lifespan, this energy-efficient fixture is built to last. Its white finish complements modern and contemporary ceiling designs effortlessly.

Key Features

• 5 CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K

• 1480 lumens for bright, even illumination

• High CRI 90 for accurate color rendering

• Square slim design with 0.59" height

• TRIAC dimmable for smooth brightness adjustment

• Wide 110° beam angle for uniform light

• Energy-efficient: 18W power consumption

• Long lifespan: 50,000 hours

• Ideal for residential and commercial ceilings

Technical Specifications

General Information

• Item Number: LR23535

• Description: LED18/SLIM9/5CCT/W/SQ2

• Product Type: Slim Surface Mount LED Light

• Shape: Square

• Size: 9"

Dimensions

• Length: 9"

• Width: 9"

• Height: 0.59"

• Finish: White

Photometric Performance

• CCT Selectable: Yes

• Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K

• Lumen Output: 1480 lm

• Beam Angle: 110°

• CRI: 90

Electrical

• Wattage: 18W

• Input Voltage: 120V

• Dimming: TRIAC

• Power Factor: >0.9

• Input Current: 167mA

• Frequency: 50/60Hz

• Lumen Efficacy: 82 lm/W

• Rated Lifetime: 50,000 hours

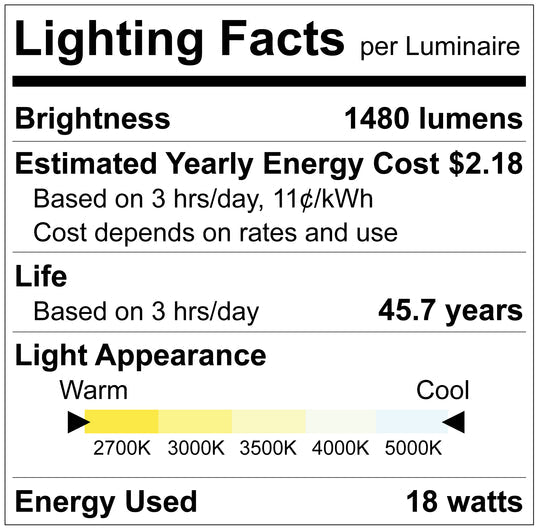

• Estimated Yearly Energy Cost: $2.16

Operating Temperature

• Minimum: -4°F

• Maximum: 104°F

Packaging Information

• UPC Barcode: 732388932368

• Master Barcode: 10732388932365

• Case Size: 4 units

• Weight: 5.84 lbs

Master Carton Dimensions

• Length: 10.40"

• Width: 10.32"

• Height: 6.85"
