| SKU(s) | HBRSR-221816L-4K5K-BLK |
| Wattage | 95W - 150W |
| Voltage | 120-277V |
| Lumens | 22,000/18,000/16,000Lm |
| Color Temp | 40K & 50K (Selectable) |
| Efficacy | 168 Lm / W |
| CRI | 80+ CRI |
| Height | 5.6" |
| Diameter | 10.6" |
| LED Life | 146,000H @ L70 |
| Certs |
|
 View Spec Sheet
|

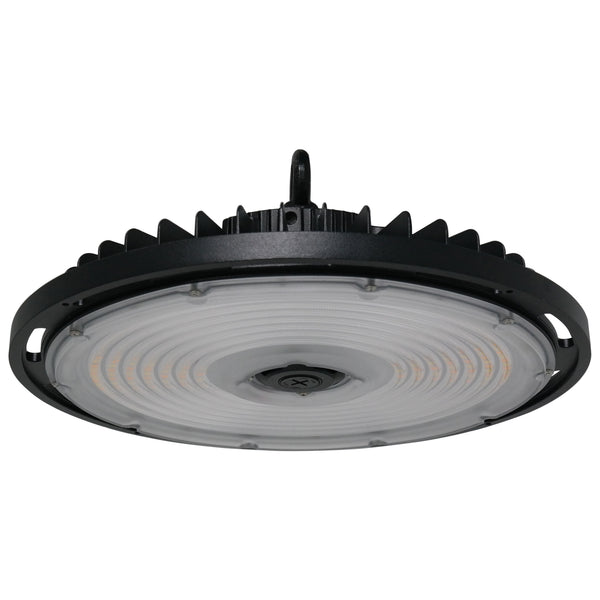

The HBRSR is a premium round LED high bay luminaire. This versatile fixture is Lumen and Kelvin field selectable, offering output from 16,000 to 35,000 nominal lumens and 2 color selection. Only 4 SKUs provide the entire range of CCT and Lumen output. The HBRSR is Sensor-ready for easy field installation of screw-in sensor, sold separately. It is designed to illuminate a wide variety of settings including commercial, industrial and retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and clear glass lens, the HBRSR provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.
► DLC premium approved.
► IP65 rated for ingress protection.
► 5-year warranty of all electronics and housing.
► Optional Mounting kits available for optimal versatility
► Universal 120-277 AC voltage (50-60Hz). Optional Universal 277-480 AC voltage (5060Hz) also available.
► 0-10vdc dimming drivers are standard.
► Optional reflectors available
$125.98 /each
| SKU(s) | HBRSR-353024L-4K5K-WHT |
| Wattage | 146W - 236W |
| Voltage | 120-277V |
| Lumens | 35,000/30,000/24,000Lm |
| Color Temp | 40K & 50K (Selectable) |
| Efficacy | 168 Lm / W |
| CRI | 80+ CRI |
| Height | 5.6" |
| Diameter | 13" |
| LED Life | 146,000H @ L70 |
| Certs |
|
|
View Spec Sheet
|
$125.98 /each
| SKU(s) | HBRSR-353024L-4K5K-BLK |
| Wattage | 146W - 236W |
| Voltage | 120-277V |
| Lumens | 35,000/30,000/24,000Lm |
| Color Temp | 40K & 50K (Selectable) |
| Efficacy | 168 Lm / W |
| CRI | 80+ CRI |
| Height | 5.6" |
| Diameter | 13" |
| LED Life | 146,000H @ L70 |
| Certs |
|
|
View Spec Sheet
|
$85.98 /each
| SKU(s) | HBRSR-221816L-4K5K-WHT |
| Wattage | 95W - 150W |
| Voltage | 120-277V |
| Lumens | 22,000/18,000/16,000Lm |
| Color Temp | 40K & 50K (Selectable) |
| Efficacy | 168 Lm / W |
| CRI | 80+ CRI |
| Height | 5.6" |
| Diameter | 10.6" |
| LED Life | 146,000H @ L70 |
| Certs |
|
|
View Spec Sheet
|
$134.98 /each
| SKU(s) | HBC-30L-50K-PS |
| UPC | 032886309045 |
| Color T... | 5000K |
| Wattage | 125W/150W/200W |
| Voltage | 120-277V |
| Lumens | 19,000 Lm - 30,000 |
| Color Temp | 5000K |
| Efficacy | 155 Lm / W |
| CRI | 80 CRI |
| Height | 7.2" |
| Diameter | 11.8" |
| Certs |
|
|
View Spec Sheet
|
Commercial LED Round High Bay | Power Selectable | 125W-2...
