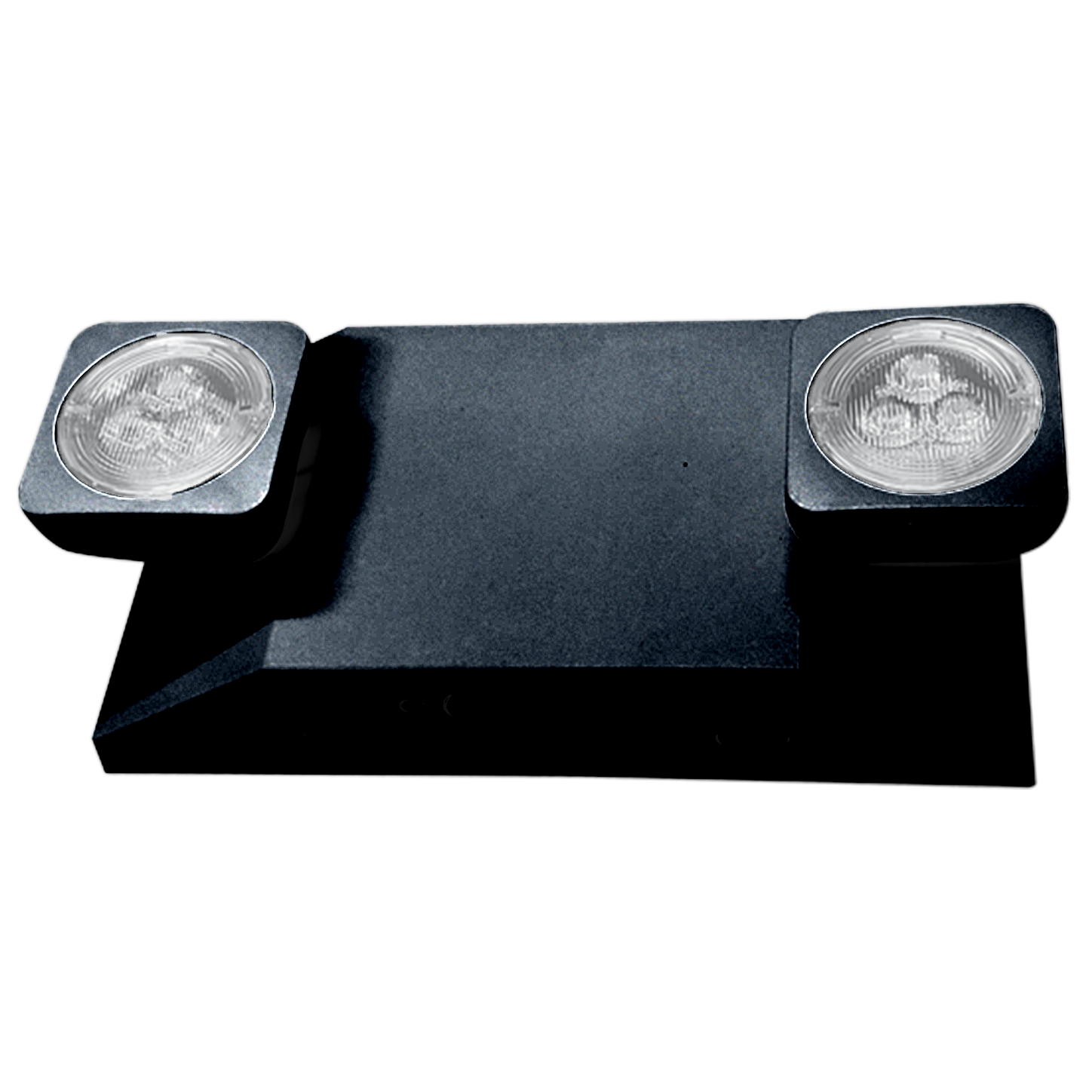

LED Emergency Light | Thermoplastic | Low Profile
Product Description
• Long lasting, efficient, ultra bright white LED lamp heads.
• 1.5 watt (3 LEDs x 0.50 watt) per head.
• Unique all-inclusive lamp, reflector and lens assembly.
• Adjustable LED lamp heads provide up to 30-ft center-to-center spacing with 3-ft path of egress at 10-ft
mounting height.
• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum
90- minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Universal knockout pattern on back plate for surface mount.
• Suitable for wall or ceiling mount.
• Knockout for conduit applications.
• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
• RC: Remote capacity of 2.5 watts.
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet
electrical and life safety codes.
• Five year warranty on all electronics and housing. Batteries pro rated for five years.
• UL listed for damp locations (0°C – 50°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Certified to CEC under title 20 regulations.
