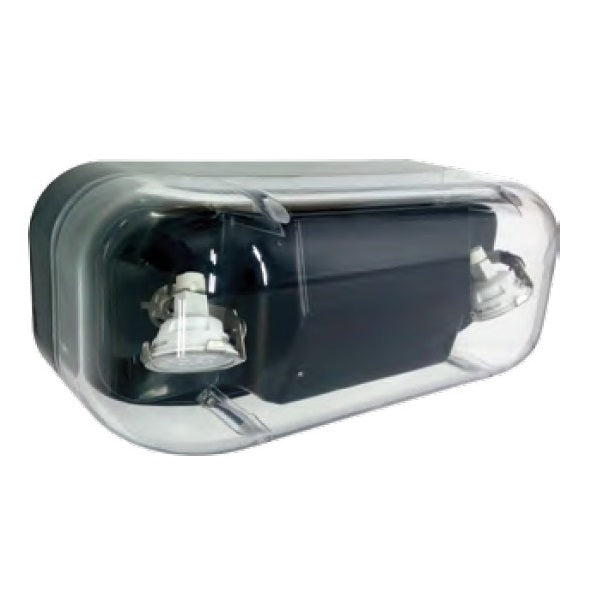

Hazardous Location Emergency Light Unit LED NEMA4X/NSF | Black & White Housing

The INDEMR16 LED NEMA 4X/NSF Emergency Unit is a high-performance, industrial-grade LED emergency lighting solution designed for use in wet, corrosive, and sanitary environments such as food processing plants, laboratories, pharmaceutical facilities, and clean rooms.

Featuring dual 3.3W ultra-bright MR-16 LED heads, this fixture delivers optimized illumination spacing and long-lasting performance. With a NEMA 4X and NSF rating, it provides superior resistance to moisture, dust, and chemical exposure, making it ideal for harsh industrial and washdown applications.

The INDEMR16 includes dual 120/277V input voltage, a maintenance-free rechargeable battery system, and an automatic solid-state transfer switch to ensure a minimum of 90 minutes of emergency lighting during power outages. Its bi-color LED indicator and push-to-test switch simplify routine maintenance and code compliance testing.

Key Features

• Dual adjustable 3.3W MR-16 LED lamp heads for high-intensity illumination

• Dual 120V/277V input voltage for universal installation compatibility

• Bi-color LED indicator: Green for normal operation, Red for battery check

• Push-to-test switch for easy NFPA and OSHA compliance testing

• 90-minute minimum emergency runtime via internal battery backup

• Automatic solid-state transfer switch ensures seamless operation during outages

• Fully automatic, two-rate charger recharges discharged battery within 24 hours

• Maintenance-free NiCd or sealed lead acid battery, depending on model

• Watertight gasket and universal knockout pattern for secure wall mounting

• NEMA 4X and NSF rated for wet, washdown, and food-safe environments

• Corrosion-resistant, durable housing for industrial-grade protection

• Available Remote Capacity:

  • 7.8W (15W Model)

  • 28.8W (36W Model)

  • 46.8W (54W Model)

Technical Ratings & Certifications

• NEMA 4X: corrosion-resistant, watertight, and dust-tight enclosure

• NSF Certified: suitable for food service and sanitary environments

• UL Listed for damp and wet locations

• NFPA 101 Life Safety Code compliant

• OSHA and NEC compliant for emergency egress lighting

• Voltage: 120/277V AC

• Output Voltage: 6V/12V DC

• Battery Options:

  • 6V/12V NiCd (15W models)

  • 6V/12V Sealed Lead Acid (SLA) (36W and 54W models)

• Runtime: Minimum 90 minutes

• Recharge Time: 24 hours maximum

Ideal Applications

• Food processing plants

• Pharmaceutical and biotechnology facilities

• Commercial kitchens

• Cold storage and refrigerated environments

• Chemical and wastewater plants

• Laboratories and clean rooms

• Industrial warehouses and factories

• Marine and offshore environments
