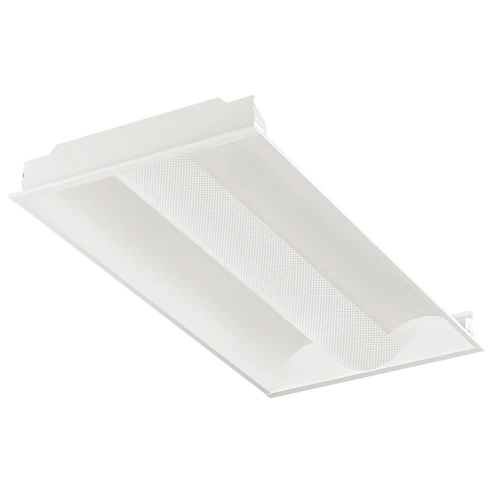

2X4 LED Indirect Center Net Basket Troffer | 8,050 Lumens Max | 120/277V | CCT Selectable | Neptune Series | Goodlite G-98002
- SKU: G-98002
- UPC: 990379980020
- Category: Goodlite, LED Troffer Lighting
Certs:
Deliver glare-free, uniform ambient illumination across commercial office environments, educational facilities, and healthcare spaces with the Neptune 2x4 Indirect Center Net Basket Troffer LED Luminaire. Registered under product code G-98002 (Ordering Code: F/2X4/70W/ICNB/WS3/5CCT), this high-performance architectural lay-in fixture features an indirect center basket design paired with a high-transmittance frosted diffuser. By redirecting light upward into the curved reflector cavity before casting it down into the space, it eliminates harsh direct glare (UGR <22), providing soft, evenly distributed illumination ideal for computer workstations and high-occupancy open plans.

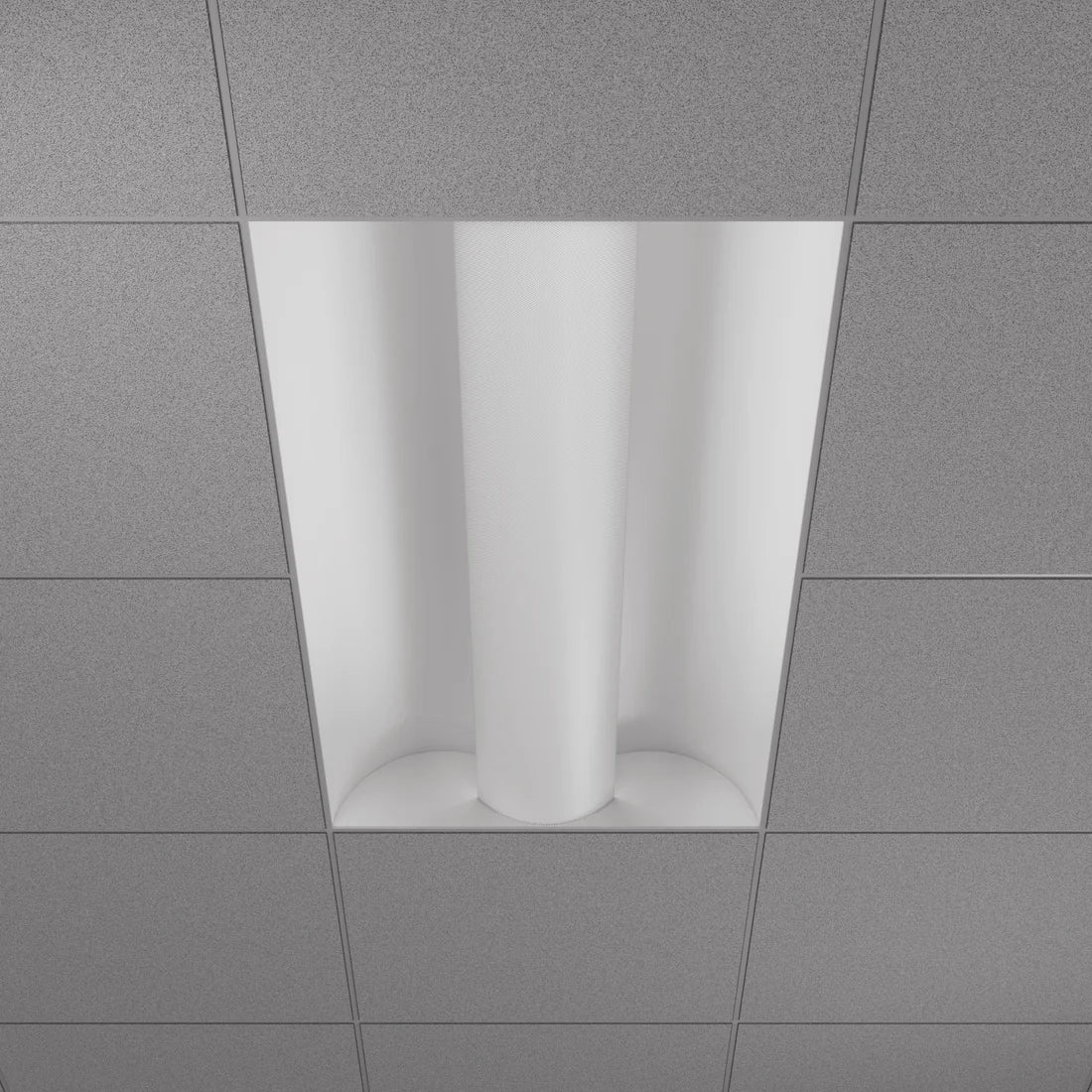

Designed for standard drop-in T-bar ceiling grids, the fixture features a shallow 4.72-inch housing depth for quick lay-in installation. Field versatility is built into the unit, combining a 3-stage selectable wattage switch (50W, 60W, and 70W)—producing scalable outputs of 5750, 6900, or 8050 lumens—with an internal 5-CCT selectable switch (3000K, 3500K, 4100K, 5000K, and 6500K). The multi-volt driver operates on line voltages from 120V to 277V with standard continuous 0-10V dimming. Additionally, the luminaire comes equipped with a pre-installed motion sensor port (sensor sold separately) to enable effortless plug-and-play occupancy or daylight harvesting controls. DLC and ETL listed, it is backed by a 5-year limited warranty.
Key Features:
-
Indirect Center Net Basket Optics: Diffuses light through a center basket and curved reflector cavity to produce soft, low-glare illumination (UGR 22).
-
Multi-Wattage & 5-CCT Selectable: Field-tunable power settings (50W/60W/70W up to 8050 lumens) and color temperatures (3000K to 6500K) maximize stocking and job-site flexibility.
-
Pre-Installed Motion Sensor Port: Includes a dedicated control socket to accept quick snap-in occupancy and daylight sensors (sold separately).
-
Universal 120-277V Driver with 0-10V Dimming: Seamlessly integrates into commercial building management systems for continuous dimming control.
-
DLC & Wet-Location Certified: Meets stringent commercial efficiency standards and is safe for use in high-humidity or moist commercial environments.
Technical Specification Table
| Technical Specification | Product Details (G-98002 Profile) |
| Item Registry Number | G-98002 |
| Ordering Code | F/2X4/70W/ICNB/WS3/5CCT |
| Product Line / Series | Neptune Architectural Indirect Troffer Series |
| Housing Shape & Size | 2x4 Foot Lay-In Grid Troffer |
| Optical Design | Indirect Center Net Basket with Frosted Diffuser |
| Glaring Index Rating | UGR <22 (Low-Glare Architectural Profile) |
| Light Source Type | Integrated High-Output LED Engine |
| Overall Depth (Height) | 4.72 Inches |
| Mounting Configuration | Lay-In T-Bar Drop Ceiling Grid |
| Selectable Power Levels | 3-Stage Switchable: 50W / 60W / 70W |
| Input Operational Voltage | 120-277V AC Universal Multi-Volt Driver |
| Luminous Output Performance | 5750 Lumens (50W) / 6900 Lumens (60W) / 8050 Lumens (70W) |
| Color Rendering Index (CRI) | 80 CRI |
| Beam Spread Angle | 120° Wide Ambient Distribution |
| Selectable Color Options | 5-CCT Switch (3000K / 3500K / 4100K / 5000K / 6500K) |
| Dimming Protocol | 0-10V Continuous Commercial Dimming |
| Controls Readiness | Pre-Installed Motion Sensor Port (Sensor Sold Separately) |
| Environmental Location Rating | Wet-Location Rated |
| Regulatory Compliances | Certified DLC Listed, ETL Listed |
| Factory Product Warranty | 5-Year Limited Warranty |
Logistics & Packaging Specifications
-
UPC Barcode Registration: 990379980020
-
Master Case Pack Quantity: 1 Unit per Carton
View Spec Sheet
