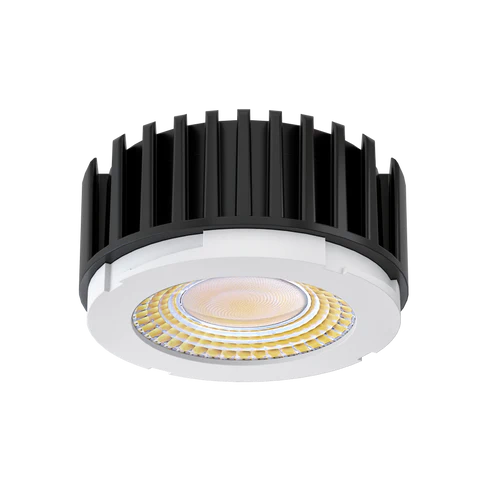

Goodlite Lighting 3.5" Shallow Interchangeable Module LED Downlight | 900Lm | CCT Selectable | Goodlite G-23501

$95.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

Enhance commercial and residential architectural lighting with the Aster 3.5" 10W LED Interchangeable Module (Model G-23501, Ordering Code: M3.5/10W/LED/5CCT). Designed for versatile performance in compact recessed footprints, this 3.5-inch LED engine features an interchangeable optics module system equipped with a default clear diffuser lens and a 40° beam angle. Featuring universal mounting compatibility, it delivers clean, low-glare illumination ideal for hospitality, retail, office, and multi-family residential applications.

Delivering 900 lumens using only 10W of power, this module operates seamlessly across a multi-voltage 120-277V input range (230mA output) with dual-dimming flexibility (TRIAC and 0-10V dimming down to 5%). It offers field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) plus integrated Dim-to-Warm (DTW) modes, backed by exceptional color fidelity (CRI >90). Built to stringent commercial building codes, the module is IC Rated, Wet Location Rated, FT6 Plenum Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.

Key Features:

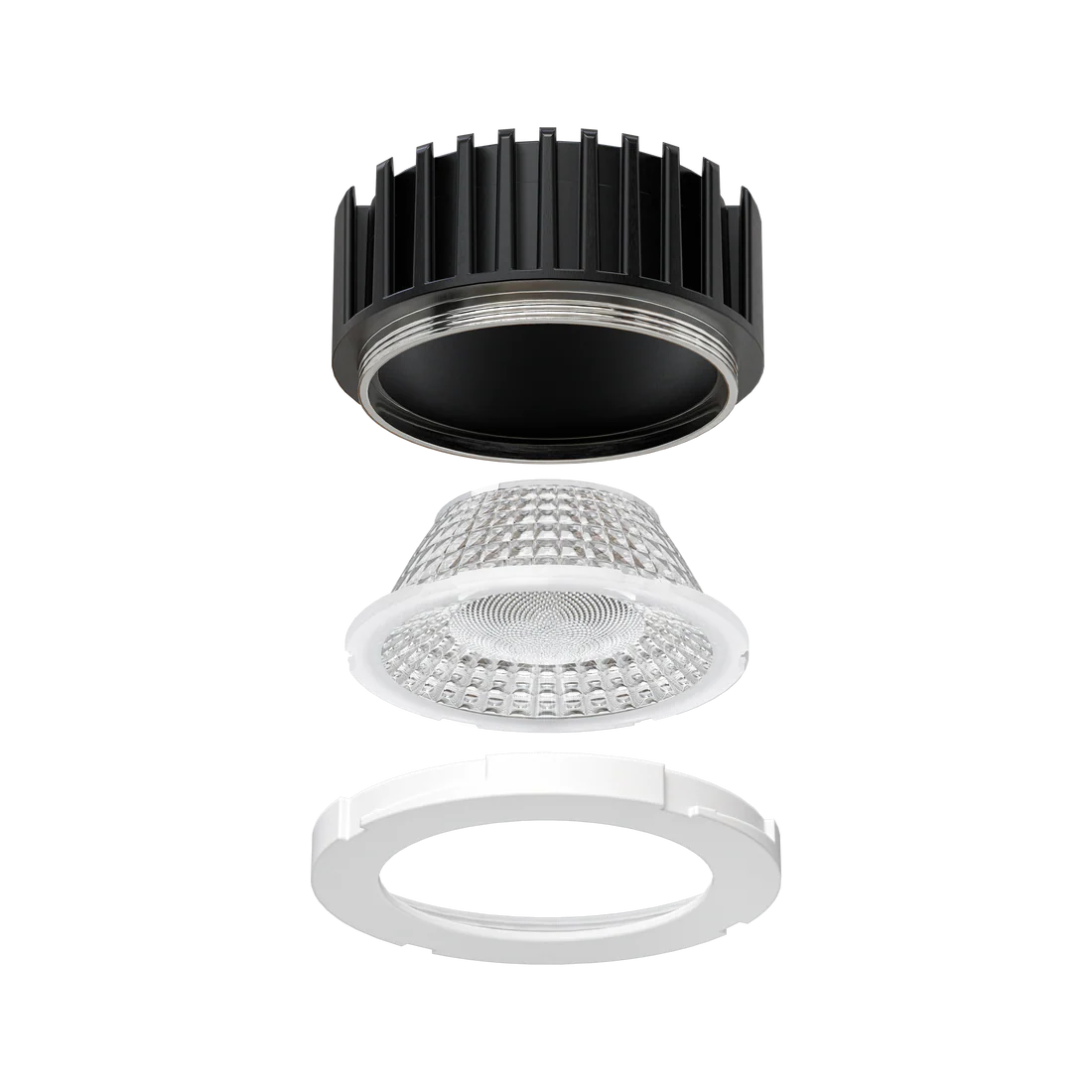

  • Interchangeable Module System: Modular 3.5-inch architectural design featuring a default clear diffuser and a 40° beam spread.

  • 5-CCT + Dim-to-Warm Selectable: Field-selectable color temperatures (2700K, 3000K, 3500K, 4100K, 5000K) plus multi-select Dim-to-Warm functionality.

  • Efficient Compact Output: Produces 900 lumens at 10W with high color accuracy (CRI >90).

  • Universal 120-277V Input: Compatible with both residential (120V) and commercial (277V) electrical supply systems (230mA output current).

  • Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V dimming systems (100% to 5%).

  • Comprehensive Safety & Compliance: IC Rated for direct insulation contact, Wet Location Rated, FT6 plenum wiring compliant, and California Title 24 Listed.

Technical Specification Table

Technical Specification Product Details (G-23501 Profile)
Product Model / SKU G-23501
Ordering Code M3.5/10W/LED/5CCT
Product Line / Series Aster Interchangeable LED Module Series
Nominal Module Size 3.50 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Type Universal Mounting
Power Consumption 10W
Input Voltage Range 120-277V AC
Output Current 230mA
Luminous Output 900 Lumens
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 40° Optics (Default)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) + Dim-to-Warm (DTW)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379235014

  • Master Case Pack Quantity: 18 Units per Master Pack
