EasyLED-B5Q-full-cutoff-architectural-led-bollard-bronze-finish
B5Q Series

EasyLED Full Cutoff Bollard | 758 Lumens Max | 120/277V | B5Q Series

$475.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed IP65 Certified ETL Certified

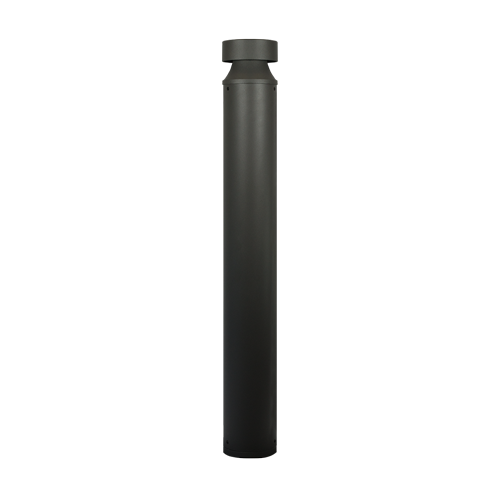

Provide low-glare, high-performance perimeter safety and architectural accent lighting with the EasyLED B5Q Full Cutoff Bollard Series. Designed as an energy-efficient replacement for HID lighting systems up to 70W MH or HPS, this 40.125" tall round bollard features an extruded aluminum housing with a flush mounting base and flat-top profile. It is ideal for retail centers, office parks, schools, universities, public transit hubs, and medical facilities.

The series is available in three optical configurations: 360° Full Cutoff (B50QF), 180° Shielded (B5HQF), and 120° Shielded (B5TQF). Consuming between 10W and 17W (11.2W to 18.9W system input), the fixtures deliver up to 758 lumens across 3000K, 4000K, and 5000K CCT options. Optics are protected by a clear, UV-stabilized, vandal-resistant polycarbonate lens.

Powered by an electronic 120-277V driver with 0-10V dimming standard (10%–100%) and internal 2kV surge protection, the sealed LED compartment is IP66 rated and certified ETL Listed for Wet Locations. Available in architectural Textured Bronze and Black powdercoat finishes over a chromate conversion coating, it boasts an extraordinary L70 LED lifespan of 147,000 hours at 25°C and includes a 5-year warranty.

Key Features:

  • HID Replacement Efficiency: Replaces up to 70W Metal Halide or HPS systems with low-wattage 10W to 17W LED arrays.

  • Versatile Shielding & Optical Options: Available in 360° full cutoff, 180° shielded, and 120° shielded light distributions.

  • Rugged IP66 Construction: Extruded aluminum body with vandal-resistant UV-stabilized polycarbonate lens and IP66 sealed optical engine.

  • Long-Life Reliability: L70 rated LED lifespan exceeding 147,000 hours at 25°C ambient temperatures.

  • 120-277V with 0-10V Dimming: Universal line-voltage driver with standard 0-10V continuous dimming and internal 2kV surge suppression.

Technical Specification Table

Technical Specification EasyLED B5Q Full Cutoff Bollard
Series Models

B50QF (360° Cutoff), B5HQF (180° Shield), B5TQF (120° Shield)

HID Equivalent

Up to 70W Metal Halide / High Pressure Sodium

System Wattage

360° Models: 12.9W (12W) & 18.9W (17W)


Shielded Models: 11.2W (10W) & 17W (16W)

Delivered Lumens

360° Models: Up to 758 LM


180° Models: Up to 549 LM

Color Temperature (CCT)

3000K (Warm White), 4000K (Neutral White), 5000K (Cool White)

Lens / Optical Cover

Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens

Input Voltage

120-277V AC (50/60Hz)

Driver Specs & Dimming

PF > 0.90, THD < 20%, 0-10V Dimmable (100% to 10%)

Surge Protection

2kV Standard Internal Surge Protection

Housing Material

Extruded Aluminum with Flush Mounting Base & Flat Top

Finish Options

Textured Architectural Bronze (Z) or Black (B) Powdercoat

Dimensions (Dia x H)

4.75" Diameter (120mm) x 40.125" Height (1019mm) (30" Custom Height Available)

LED Lifespan

L70 > 147,000 Hours @ 25°C / 67,000 Hours @ 50°C

Operating Temperature

-40°C to +50°C (-40°F to +122°F)

Certifications & Ratings

ETL Listed for Wet Locations (ANSI/UL 1598, 8750), IP66 Sealed

Compliance

Buy American Act Compliant & TAA Compliant

Warranty

5-Year Warranty

Product Logic & Ordering Catalog Matrix

Model Family  Optics / Distribution  Wattage  Driver Voltage  CCT Options  Lens Finish
B50QF

360° Full Cutoff

1X12 (12W) / 1X17 (17W)

U (120-277V)

3K (3000K)

C (Clear UV Polycarbonate)

Z (Bronze)

B5TQF

120° Shielded

1X10 (10W) / 1X16 (16W)

U (120-277V)

4K (4000K)

C (Clear UV Polycarbonate)

B (Black)

B5HQF

180° Shielded

1X10 (10W) / 1X16 (16W)

U (120-277V)

5K (5000K)

C (Clear UV Polycarbonate)

C (Custom Color)

Packaging & Factory-Installed Options

  • Included Hardware: Mounting kit with 8" zinc-plated anchor bolts included.

  • Factory Options:

    • SF: Single Fuse

    • DF: Double Fuse

    • SP: Additional Surge Protection

    • GF1: GFCI Outlet (15A, 120V)

    • S5: Microwave Sensor with Dimming & Remote Programming (120-277V)

    • 30: Custom 30" Height Option

  • Field Accessories (Ordered Separately):

    • BREBASE: Bollard Retrofit Base Kit (11.5" Dia x 1.5" H) adapts new bollard to existing bolt patterns.

    • P17125: Internal Microwave Sensor with Dimming.

    • P17126: Remote Programming Tool for P17125 sensor.

    • BOADP1: Adapter Plate with Gaskets for Outlet Boxes.
