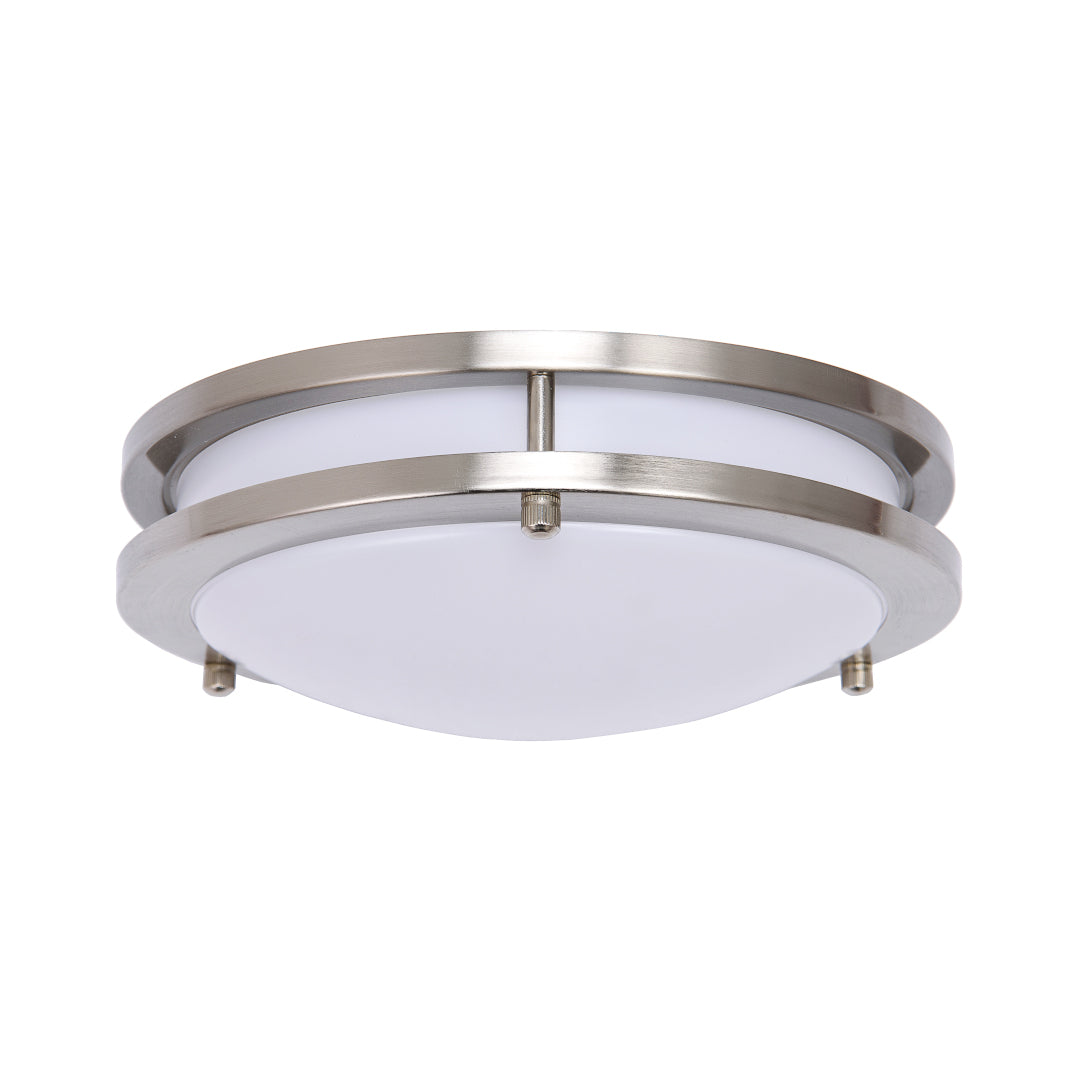

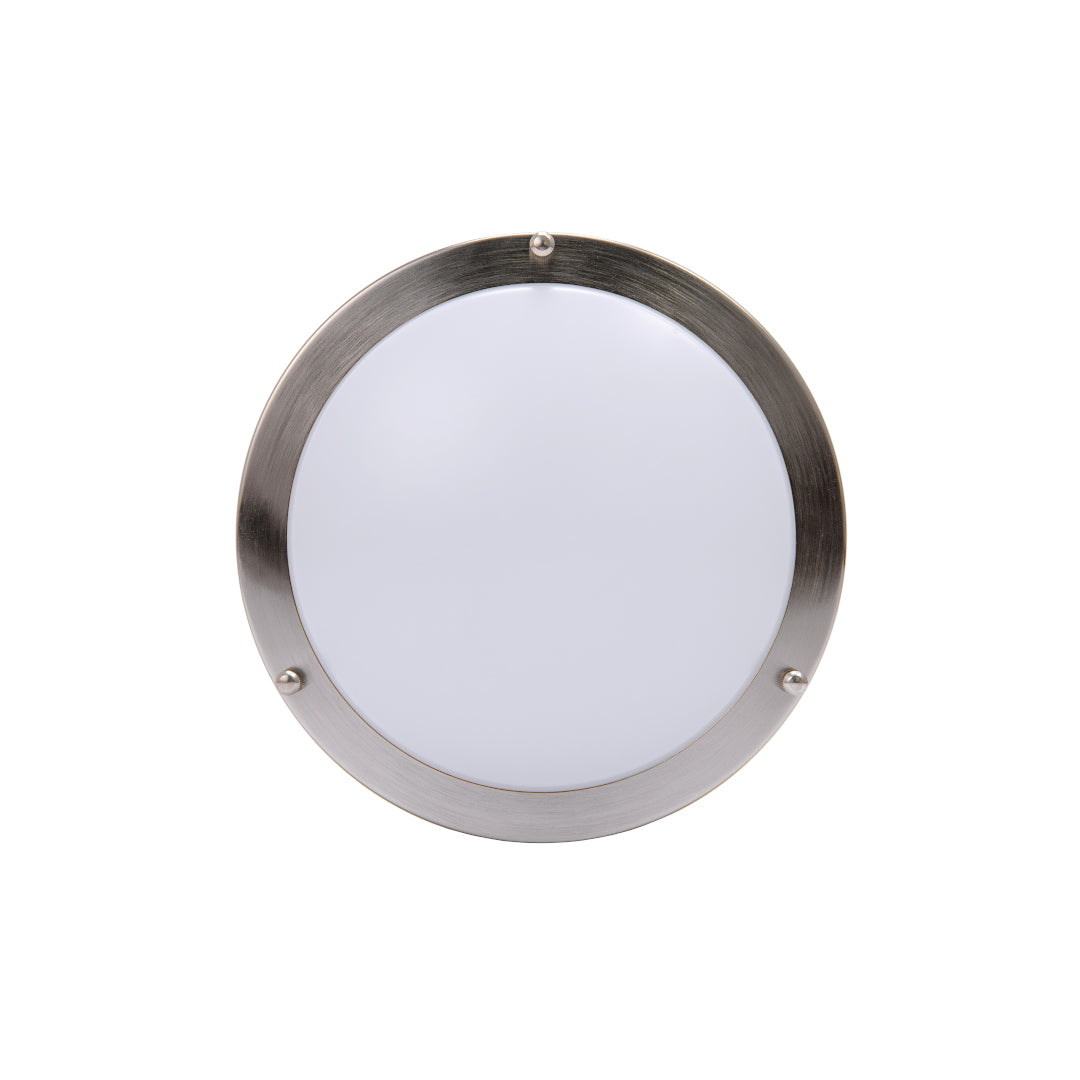

| SKU(s) | DR10-10L-KFS |
| Size | 10" (1k Lm) | 14" (1.8k Lm) | 18" (2k Lm) |
| Wattage | 15 | 20 | 20W |
| Voltage | 120V |
| Lumens | 1K | 1.8K | 2K Lm |
| Color Temp | Selectable |
| Efficacy | 66-100 Lm / W |
| CRI | 90+ CRI |
| Height | 3" | 4" | 4.5" |
| Diameter | 10" | 14" | 18" |
| LED Life | 93,000H @ L70 |
| Certs |
|
 View Spec Sheet
|
▪ Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white),
and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide at least 70% of initial lumen output (L70) for 93,000 hours of operation.**
▪ Color rendering index (Ra) > 90.
▪ DR10 provides 1,000 nominal lumens from 15 nominal watts.
▪ DR14 provides 1,800 nominal lumens from 20 nominal watts.
▪ DR18 provides 2,000 nominal lumens from 20 nominal watts.
▪ Input voltage = 120V 60Hz.
▪ Power factor > 0.90.
▪ Triac dimming.
▪ Steel housing, brushed nickel finish.
▪ Polystyrene lens.
▪ Easy installation in new construction or remodel applications.
▪ This device is not intended for use with emergency exits.
▪ cETLus listed for damp locations in ambient temperatures of -15°C to 40°C (5°F to 104°F).
▪ Energy Star qualified.
▪ Title 24 qualified.
▪ Complies with FCC Part 15, class B.
▪ Input transient protection = 1kV.
▪ 5-year warranty of all electronics and housing.
$63.00 /each
| SKU(s) | G-48414 |
| UPC | 696304484143 |
| Wattage | 8 Watts |
| Voltage | 120V |
| Lumens | 600 Lm |
| Color Temp | Selectable |
| Efficacy | 75 Lm / W |
| CRI | 90+ CRI |
| Width | 2.56" |
| Length | 2.56" |
| Height | 2.55" |
| LED Life | 50,000 Hours |
| Certs |
|
|
View Spec Sheet
|
$23.99 /each
| SKU(s) | RDL/4GIM/9/5CTS-46 |
| UPC | 751338038622 |
| Wattage | 9 Watts |
| Voltage | 120V |
| Lumens | 580 Lm |
| Color Temp | Selectable |
| Efficacy | 64 Lm / W |
| CRI | 90 CRI |
| Width | 4.92" |
| Length | 4.92" |
| Height | 1.97" |
| LED Life | 50,000 Hours |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$26.17 /each
| SKU(s) | RDL/6SQ/15/5CTS-46 |
| UPC | 751338038721 |
| Wattage | 15 Watts |
| Voltage | 120V |
| Lumens | 1,000 Lm |
| Color Temp | Selectable |
| Efficacy | 57 Lm / W |
| CRI | 90 CRI |
| Width | 7.09" |
| Length | 7.09" |
| Height | 0.73" |
| LED Life | 50,000 Hours |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$53.00 /each
| SKU(s) | G-48469 |
| UPC | 696304484693 |
| Wattage | 7 Watts |
| Voltage | 120V |
| Lumens | 500 Lm |
| Color Temp | Selectable |
| Efficacy | 75 Lm / W |
| CRI | 90+ CRI |
| Width | 2.07" |
| Length | 2.07" |
| Height | 4.34" |
| LED Life | 50,000 Hours |
| Certs |
|
|
View Spec Sheet
|
2" Round CCT Selectable LED Downlight, 8W
4" Gimbal CCT Selectable LED Slim Fit Recessed Downlight, 9W
