1" Interchangeable Module LED Downlight | 600Lm | CCT Selectable | Goodlite G-48470

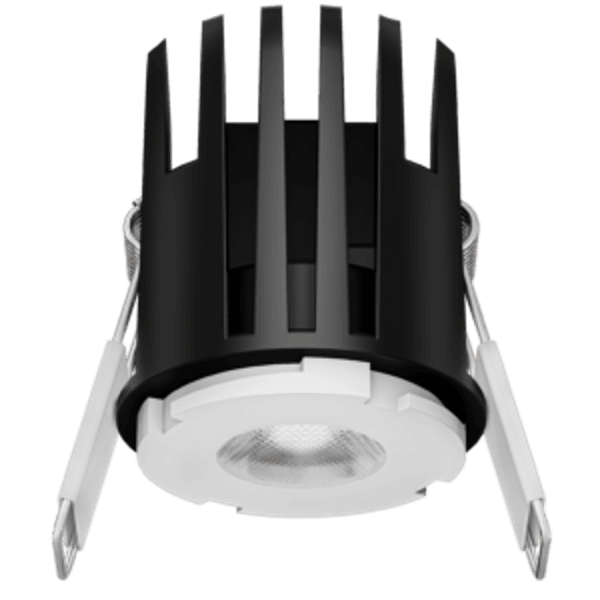

Deliver clean, architectural illumination from a ultra-compact profile with the Aster 1" 7W Interchangeable LED Module (Model G-48470, Ordering Code: M1/7W/LED/5CCT). Designed for minimalist, quiet-ceiling layouts where lighting fixtures need to seamlessly blend into the architecture, this 1-inch micro LED engine features an interchangeable optics system equipped with a default clear diffuser lens and a focused 40° beam angle. Built with universal mounting compatibility, it provides discrete, high-efficiency accent and task lighting ideal for luxury residences, commercial spaces, high-end retail, and hospitality projects.

Consuming just 7W to deliver a bright 600 lumens (85 lm/W efficacy), this energy-efficient micro module operates across a universal voltage range (120-277V AC with 150mA output current). It supports dual dimming flexibility (TRIAC phase-cut and commercial 0-10V dimming from 100% down to 5%). Installers can tailor the light atmosphere directly on site using the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K), all backed by exceptional color accuracy (CRI >90). Built to meet demanding municipal safety and energy codes, it is IC Rated for direct contact with insulation, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

• Micro-Aperture Output: Delivers 600 lumens from an ultra-compact 1-inch profile while drawing only 7W of power (85 lm/W efficacy).

• 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

• Interchangeable Optics System: Modular 1-inch architectural light engine featuring a default clear diffuser lens with a focused 40° beam spread.

• Universal 120-277V Input: Connects seamlessly to standard 120V residential and 277V commercial voltage systems (150mA output current).

• Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V control systems (100% to 5%).

• Safety & Code Compliance: IC Rated for direct contact with insulation, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, and ETL Certified.

Technical Specification Table

Packaging & Logistics Specifications

• Individual Barcode / UPC: 696304484709

• Master Case Pack Quantity: 18 Units per Master Pack
