Premium 4ft LED Wraparound | CCT Selectable 35K, 4K, 5K | Power Adjustable
Premium 4ft LED Wraparound | CCT Selectable 35K, 4K, 5K | Power Adjustable Premium 4ft LED Wraparound | CCT Selectable 35K, 4K, 5K | Power Adjustable

Premium 4ft LED Wraparound | CCT Selectable 35K, 4K, 5K | Power Adjustable

$77.55 / ea

SKU(s) WR-5L-LKFS
Drivers... No Emergency Driver | EM10 Driver (1320 Nominal Lumens) | EM13 Driver (1720 Nominal Lumens) | No Emergency Driver & Microwave Occupancy Sensor | EM10 Driver & Microwave Occupancy Sensor | EM13 Driver & Microwave Occupancy Sensor
Voltage 120-277V
Lumens 5000 Lumens
Color Temp 3500K | 4000K | 5000K
Efficacy 134 lm/W
CRI 80 CRI
Width 7.1"
Length 47.7"
Height 2.8"
LED Life 196,000 Hours L70
View Specification Sheet View Spec Sheet
SKU: WR-5L-LKFS
Category: Wraparound Lights
Shipping/Return Policy

Product Description

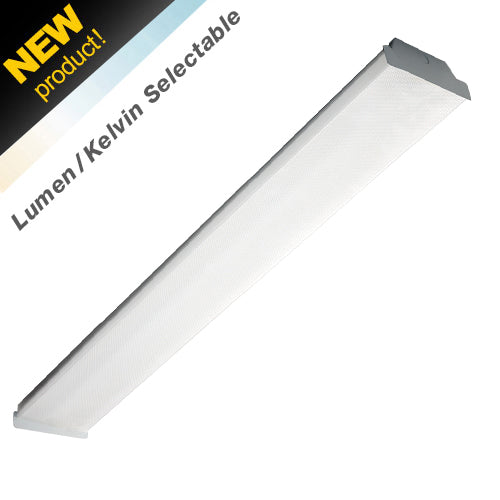

The WR-5L-LKFS is a LED wrap luminaire, which is designed as a direct replacement for fluorescent wraps. The WR-5L-LKFS is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90).**
LED chromaticity based on < 4-step ANSI quadrangles.
LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
WR-5L-LKFS provides a range of 4,100 to 5,800 nominal lumens and 132 to 154 lumens per watt (LPW).*
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming drivers are standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.
Steel housing and PMMA lens.
Optional emergency drivers and occupancy sensors are available.
Easy installation in new construction or retrofit.
cULus approved for damp locations in ambient temperatures from
- 20°C to 60°C (-4°F to 140°F).
DLC approved.
Complies with FCC Part 15, Class B.
Complies with IEEE C.62.41-1991, Class A input transient
surge protection (2.5kV).
5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
