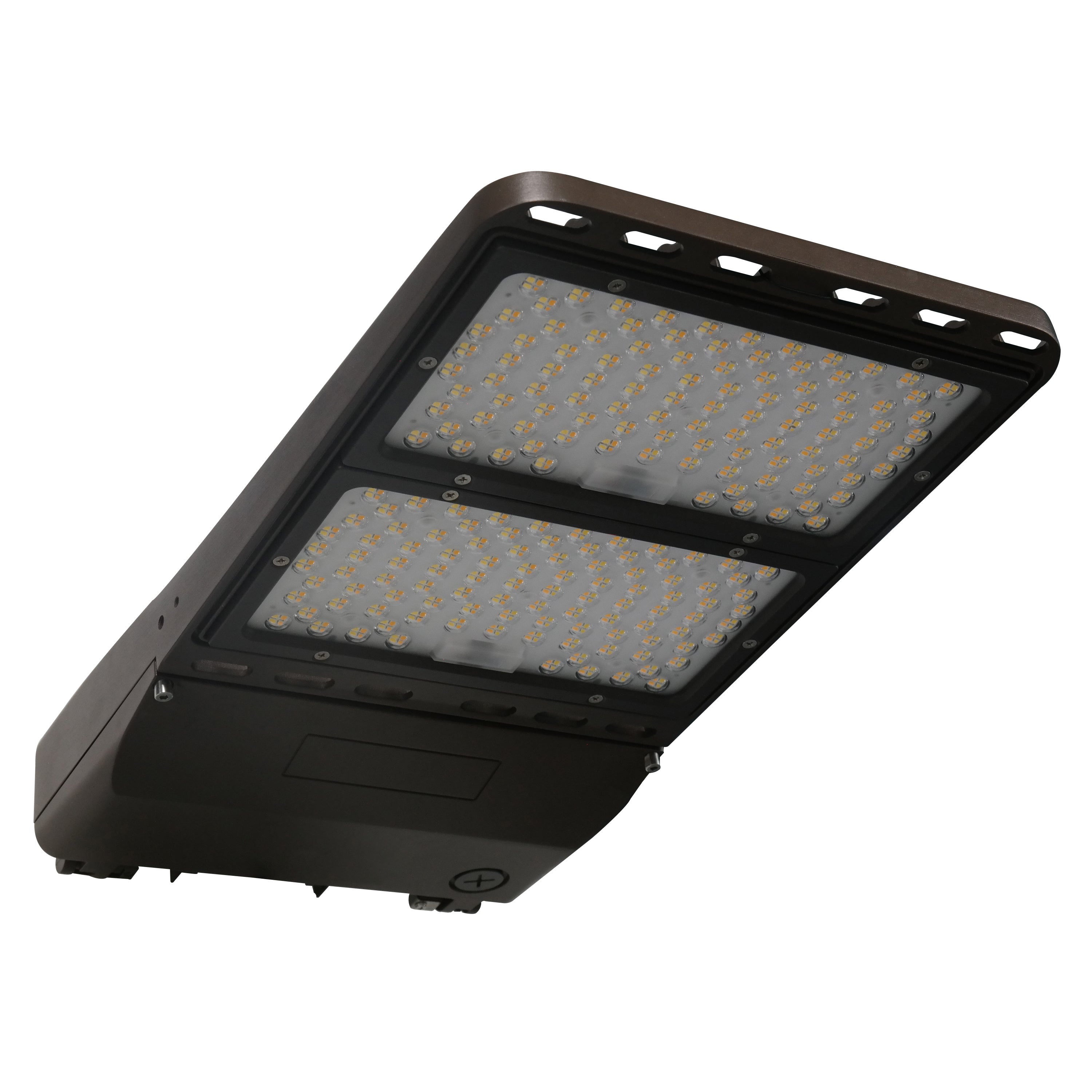

Commercial LED Area Light | CCT Selectable 3K 4K 5K | Power Adjustable 28,000 - 40,000 Lm

Product Description

MPALPRO 40L - 28,000/34,000/40,000 Lm

Mounting

*Sold separately*

*See page 6 of the specification sheet for compatible tenon poles/adapters and call for pricing*

• Yoke Mount
• Arm Mount
• Adjustable Arm Mount
• Slip Fitter Mount
• Trunnion Mount
• Wall Mount Bracket
• Wall Mount Bracket, 90°
• Double 180° Bullhorn Mounting Bracket

NEMA Photocell Receptacle, 3 pin

Features

▪Field selectable 3000k (warm white), 4000k (neutral white), and 5000k
(cool white) color
▪Long life LEDs provide 162,000 hours of operation with at least 70%
of initial lumen output (L70 ), and 49,000 hours with at least 90% of
initial lumen output (L90)
▪LED chromaticity based on 6 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v’) over the initial 6,000 hours of operation.
▪Provides a range of 28,000 to 40,000 nominal lumens.
▪IES roadway distributions include types III & V.
▪Universal 120 277V (50/60Hz) or 277 480V (50/60Hz) AC voltage with 6 foot incoming power cords.
▪0 10vdc dimming drivers are standard.
▪Watertight, compression type electrical connectors.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index (R a ) > 80.
▪Optional NEMA photocell receptacle & photocell.
▪Wall mount brackets and tenon adapters available (see page 6).
▪Die cast aluminum housing with dark bronze powder coat finish.
▪Polycarbonate lens.
▪Easy installation in new construction or retrofit.

Warranty & Listings

▪cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
▪DLC premium approved.
▪Rated for 3G vibration.
▪Lenses are rated IK08.
▪Input transient surge protection (6kV).
▪Complies with FCC Part 15, class A.
▪IP65 rated for ingress protection.
▪5 year warranty of all electronics and housing.
