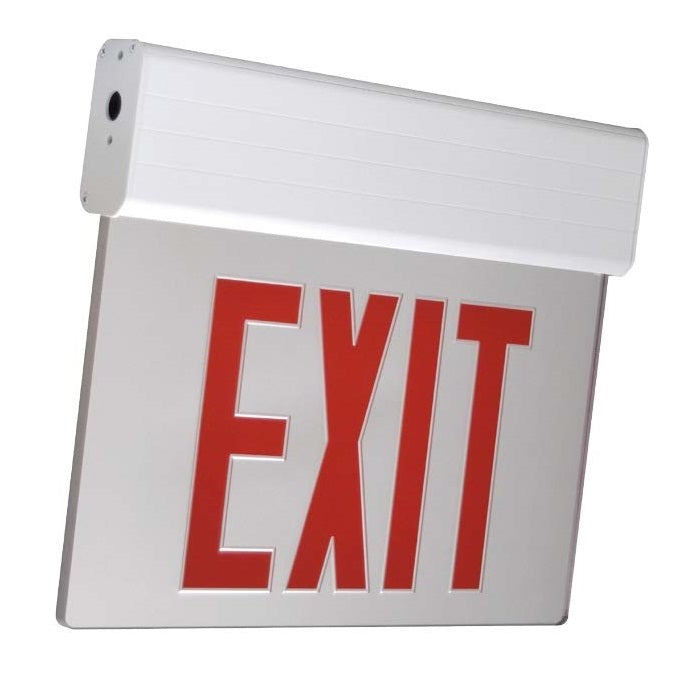

Aluminum Edge Lit LED Exit Sign w Battery Back-up

Product Description

Ultra-bright, energy efficient, long-lasting Red or Green LED.
UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
White mylar background panel.

Dual 120/277 voltage standard. Optional multi-tap 208/220/240V available.
Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
Self-adhesive chevron appliques and guide template provided for directional indication.

Custom: Signs available with requested "special" wording.
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting a a back-up to the other) supplies at the same time.
SPV: UL Listed for special voltage option

Five year warranty on all electronics and housing. Battery is pro-rated for five years.
UL listed for damp locations. (0&edg;C - 50°C / 32°F - 122°F standard)
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

More Exit Lighting

$25.50 /each

SKU(s)	EZRXTEU2RG-W
Housing...	White \| Black
Optiona...	None \| Battery Backup \| Dual Circuit Operation w/ 120V Input \| Dual Circuit Operation w/ 277V Input \| Battery Backup AND Dual Circuit Operation w/ 120V Input \| Battery Backup AND Dual Circuit Operation w/ 277V Input
Width	1 5/8"
Length	11 5/8"
Height	7 1/8"
View Spec Sheet

SKU(s)	RELZXTE2GCA-EM
UPC	655746010341

SKU(s)	RELZXTE1RCAEM
UPC	655746010372

SKU(s)	HPRL1-W
# of He...	Single Head White Housing \| Single Head Black Housing \| Double Head White Housing \| Double Head Black Housing
View Spec Sheet
